Series 01

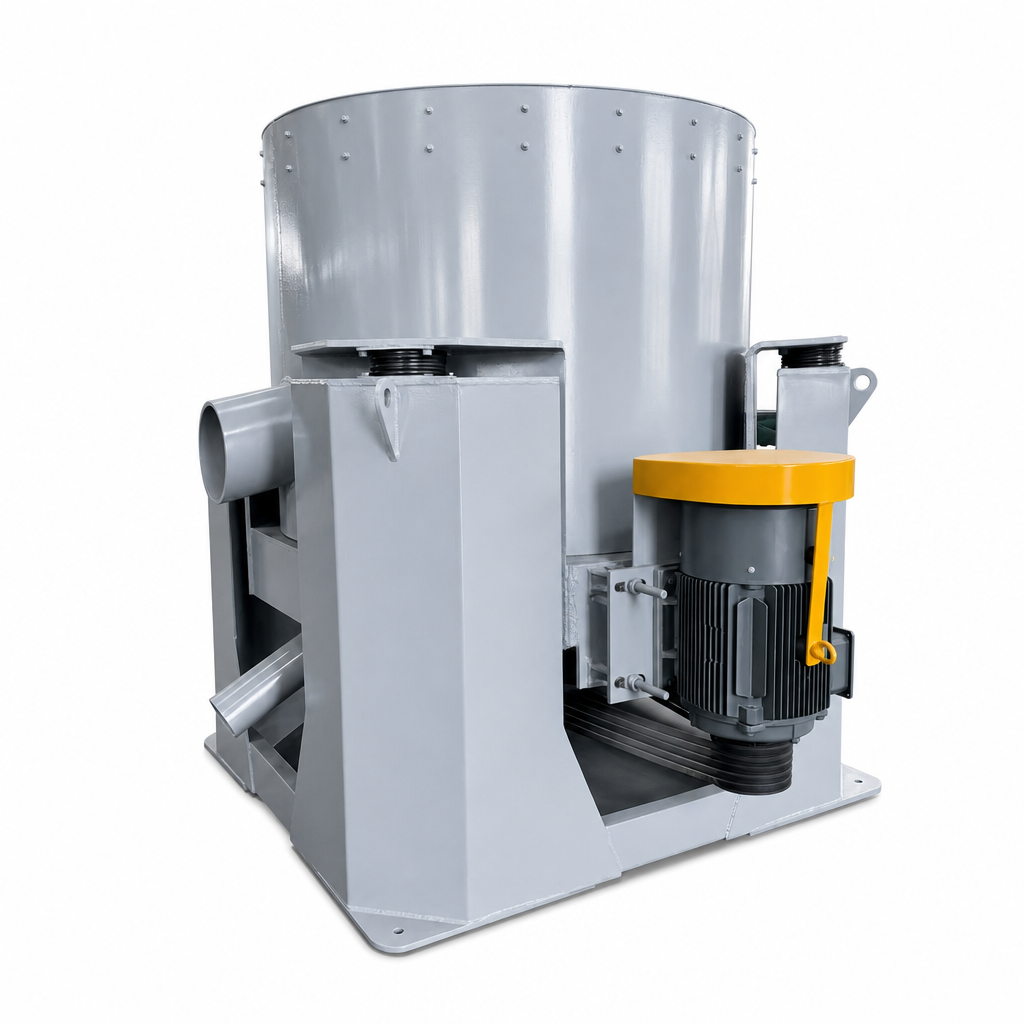

STLB Centrifugal Gold Concentrators
Models: STLB-20 · STLB-30 · STLB-60 · STLB-100
Batch centrifugal concentrators that recover fine free gold from 0–6 mm feed using an enhanced-gravity fluidized bed. Proven recovery of +38 µm particles with strong capture of the 10–38 µm fines that sluices and pans lose — the primary concentrator of every serious placer plant.
- Fine Gold Recovery 10–38 µm
- 0–6 mm Feed Size
- Batch Discharge Design
- Low Water Consumption
STLB Series Specifications
| Model | Capacity (t/h) | Max Feed (mm) | Water Flow (m³/h) | Motor (kW) |
|---|---|---|---|---|
| STLB-20 | 0.5–1 | 6 | 2–3 | 0.75 |
| STLB-30 | 2–5 | 6 | 4–8 | 2.2 |
| STLB-60 | 6–15 | 6 | 12–20 | 5.5 |
| STLB-100 | 15–25 | 6 | 25–35 | 7.5 |
Standard specifications — final confirmation at order. Recovery rate depends on feed size distribution and gold liberation; test-plant processing available for your gravel.
