Pontoon dredging platforms that suck riverbed sand and gravel out of the water, then wash, screen and size it on board — clean aggregate or gold-bearing concentrate ready at the bank, with no separate shore plant.

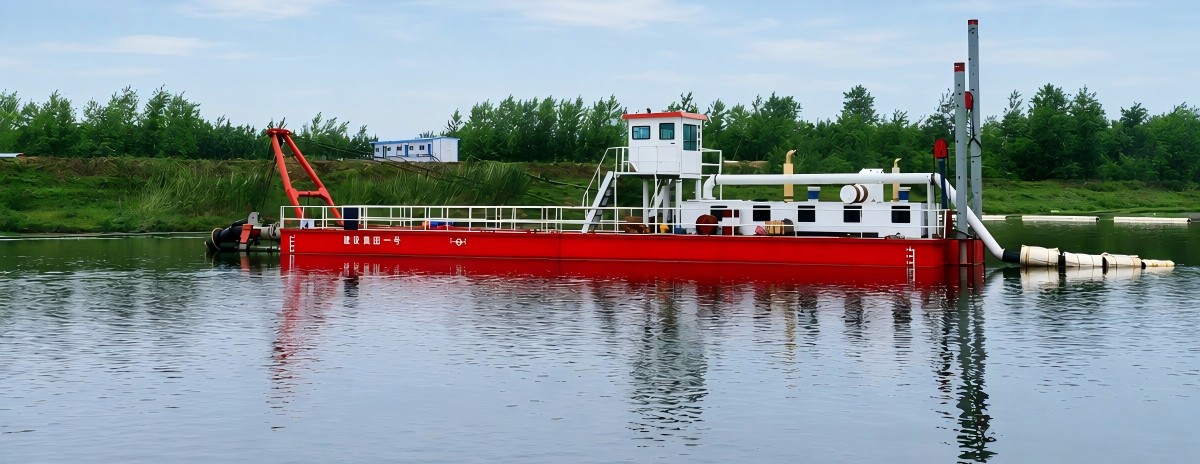

A dredger vessel is a complete floating plant. A centrifugal sand pump lifts riverbed material through a suction pipe, a grizzly rejects oversize, and an onboard trommel or sand screw washes and classifies the rest before it is stacked on a barge or pumped to the bank. Used for construction sand, lake and river aggregate, and shallow-water placer gold where the deposit sits under water.
| Model | Sand Pump | Slurry Flow (m³/h) | Onboard Washing & Sizing | Prime Power |
|---|---|---|---|---|
| DS-10 | 10 inch | 150–250 | Grizzly + TGM-800 trommel, sand screw option | Diesel ~110 kW |
| DS-12 | 12 inch | 250–400 | Grizzly + TGM-1000 trommel + sand screw | Diesel ~150 kW |
| DS-14 | 14 inch | 400–600 | Grizzly + TGM-1200 trommel + twin sand screws | Diesel ~220 kW |
| DS-14D | 14 inch ×2 | 600–900 | Full wash deck: trommel, twin screws, dewatering screen | Diesel ~330 kW |
Reference configurations — final engineering per river conditions, dredging depth and required product. Hull size, suction depth, pontoons and mooring systems confirmed at order.
One floating platform, three commercial applications.
River sand for concrete and plaster, washed and screened to your grading on board — loaded directly onto barges or pumped ashore.
Add a centrifugal concentrator on deck: the vessel becomes a floating washing and recovery plant for riverbed gold deposits.
Desilting and aggregate recovery in lakes, reservoirs and floodplain pits where shore access is limited or impossible.
Pump, grizzly, trommel and sand screw on one hull — no shore plant, no rehandling between extraction and washing.
Product stacked straight onto barges or pumped to the bank cuts trucking and rehandling cost on every cubic metre.
Moves along the river as the deposit moves — follow the pay streak instead of hauling it to a fixed plant.
Prime movers to match your site: diesel sets for remote rivers, shore-fed electric where power is available.
River width, depth, tonnage per day and the product you sell decide the hull and pump. Tell us the job and we will propose the vessel with factory-direct pricing.
Get a Vessel Quotation
