Grinding Equipment

From energy-saving ball mills to the wet pan mills trusted across African gold fields — grinding solutions sized for your ore hardness, throughput, and power availability.

Series 01

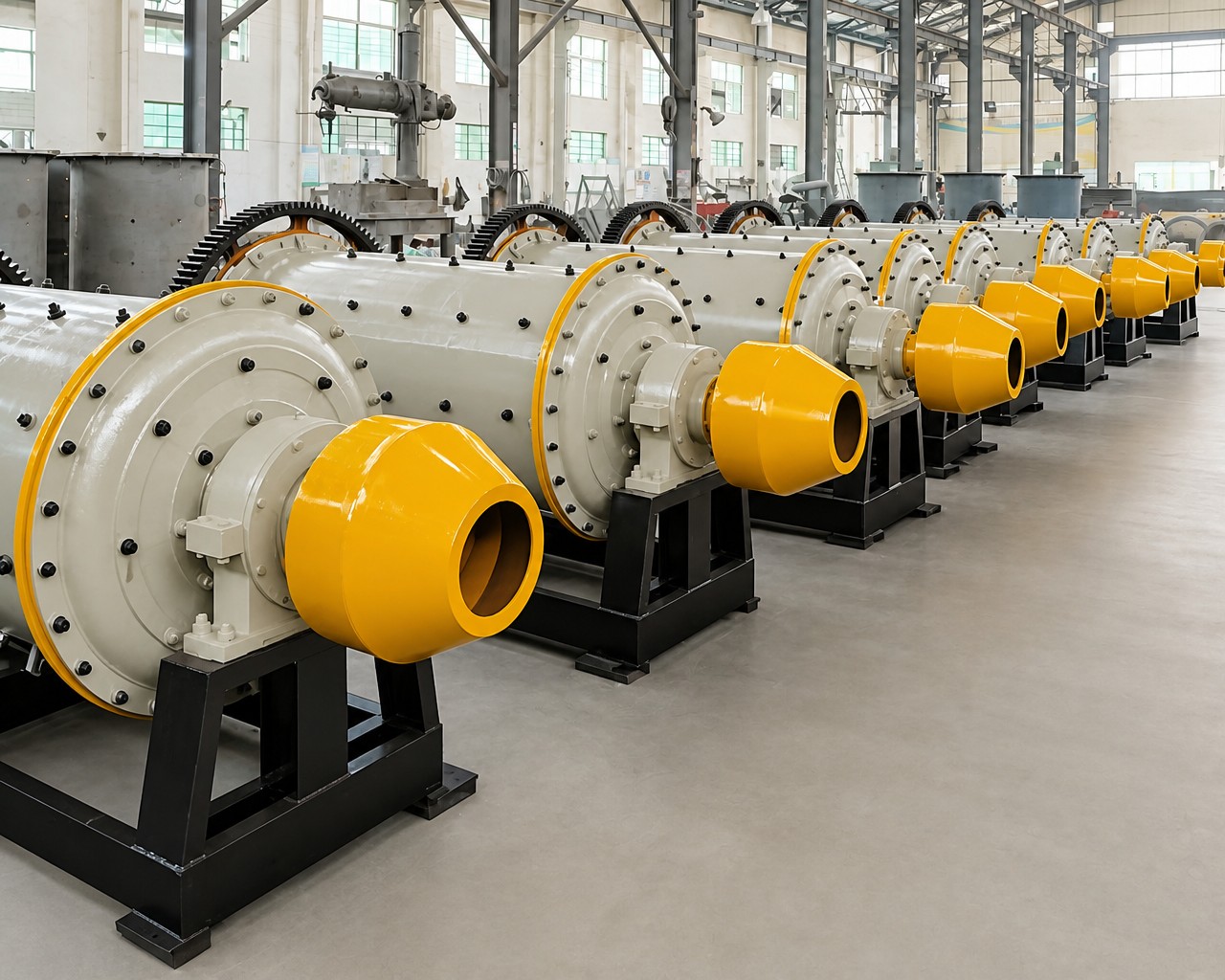

MQ Series Ball Mills

Models: 900×1800 · 1200×1200 · 1200×2400 · 1500×3000 · 1830×4500

The workhorse of hard-rock gold grinding. Energy-saving rolling bearings replace traditional sliding bearings — cutting power draw while maintaining grind consistency. Manganese liners and forged grinding balls sized to your ore.

Energy-Saving Bearings
Grid or Overflow Discharge
Manganese Liners
Gear Drive or Belt Drive

MQ Series Specifications

Model	Cylinder (mm)	Capacity (t/h)	Motor (kW)
MQ-900×1800	900×1800	0.5–2	15–18.5
MQ-1200×1200 (1212)	1200×1200	1–3	22–30
MQ-1200×2400	1200×2400	1.5–4	30–37
MQ-1500×3000	1500×3000	3–8	75–90
MQ-1830×4500	1830×4500	8–15	110–132

Standard specifications — final confirmation at order. Capacity varies with ore hardness and grind fineness. Wet and dry grinding versions available.

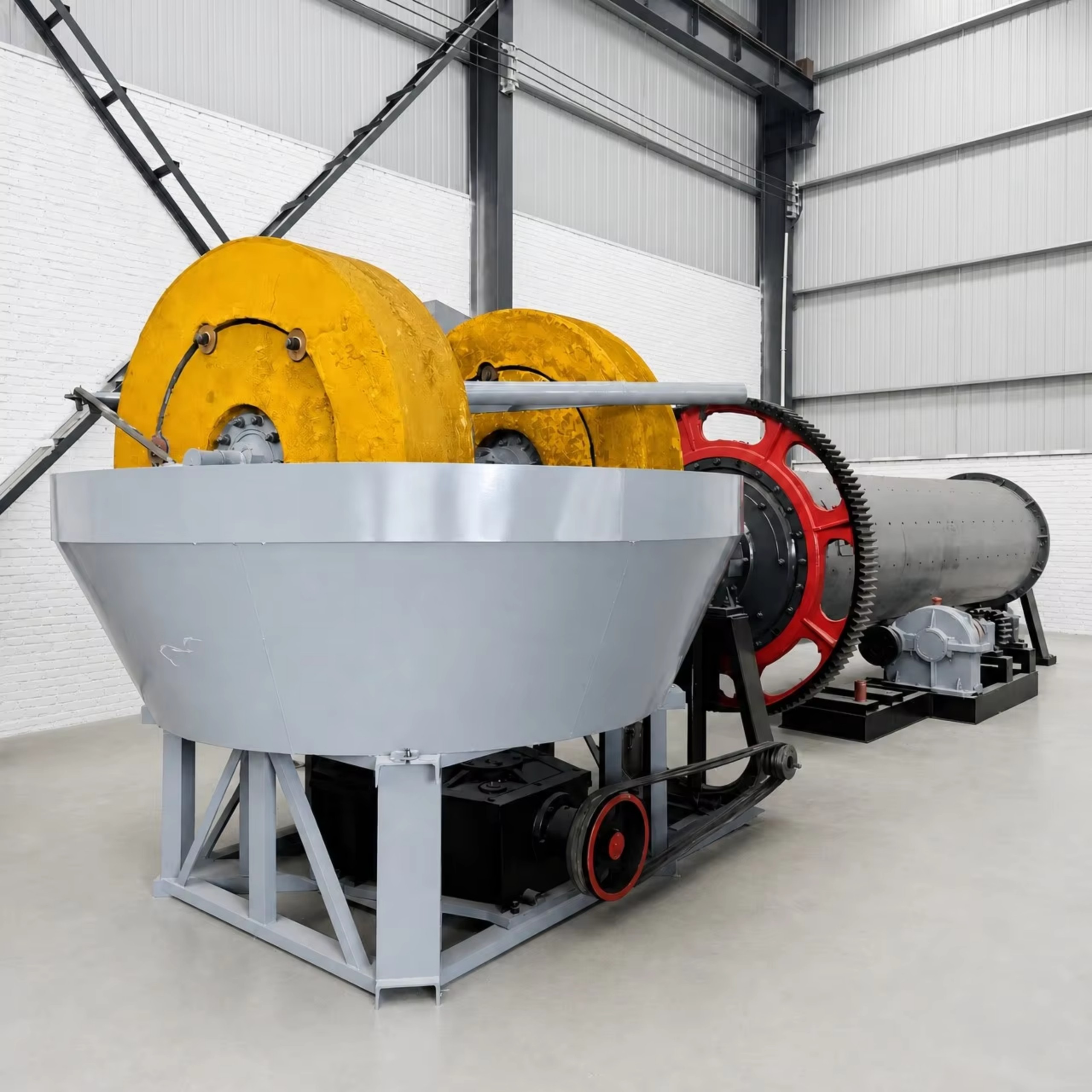

Wet pan mill (gold mill) in our showroom

Series 02

Wet Pan Mills

Models: 1200 · 1350 · 1400 · 1500 · 1600

The classic "gold mill" — two heavy wheels rolling on a stone basin, grinding and amalgamating in one step. Low cost, simple operation, and ideal for small and artisanal gold mines. The equipment of choice across African gold fields.

Grind & Amalgamate in One
Low Power, Low Cost
Simple Operation
Mercury-Free Gravity Route

Wet Pan Mill Specifications

Model	Wheel Diameter (mm)	Capacity (t/h)	Motor (kW)
WPM-1200	1200	0.5–1.5	7.5
WPM-1350	1350	1–2	11
WPM-1400	1400	1.5–2.5	15
WPM-1500	1500	2–3.5	18.5
WPM-1600	1600	3–5	22

Standard specifications — final confirmation at order. Capacity varies with ore hardness and moisture. Complete with reducer, frame and amalgamation basin.

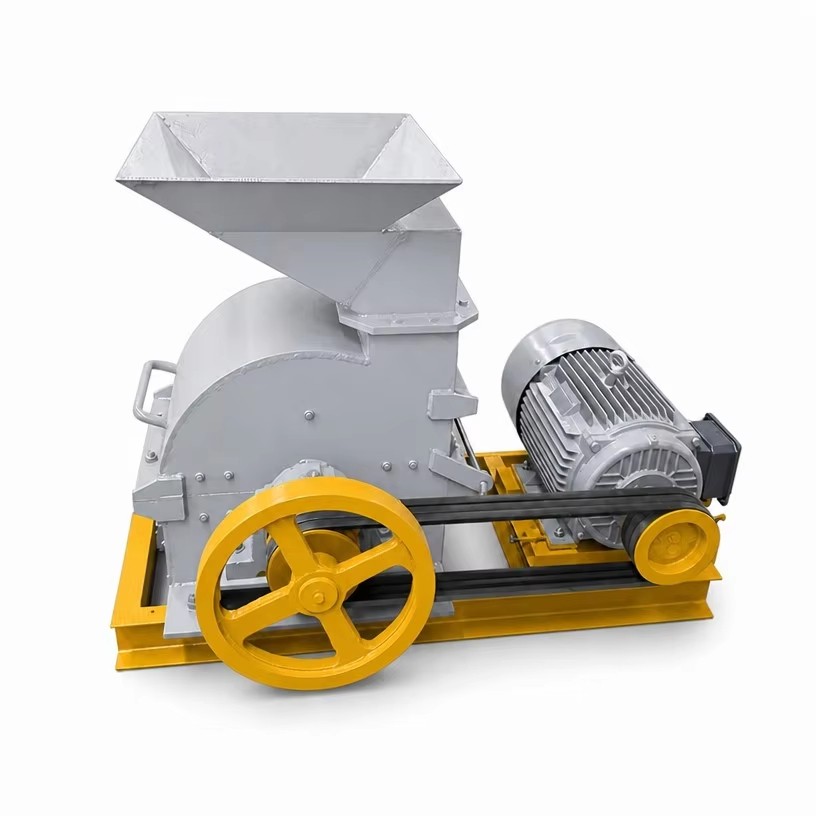

HMM Series hammer mill for small gold operations

Series 03

HMM Series Hammer Mills

Models: HMM-400×300 · HMM-600×400

Compact hammer grinding for small-scale operations — crushing and grinding ore in one pass down to 0–5 mm. Diesel or electric drive, ideal for off-grid sites and batch processing before pan or table concentration.

One-Pass Fine Grinding
Diesel or Electric
Replaceable Hammers
Small Footprint

HMM Series Specifications

Model	Rotor (mm)	Max Feed (mm)	Discharge (mm)	Capacity (t/h)	Motor (kW)
HMM-400×300	400×300	50	0–3	0.5–2	7.5–11
HMM-600×400	600×400	80	0–5	2–5	15–22

Standard specifications — final confirmation at order. Diesel-engine driven versions available. Capacity varies with material hardness and screen opening.

Grinding, matched to your operation

◎

Energy-Saving Bearings

Rolling bearings on ball mills cut power draw significantly versus sliding bearings — lower electricity cost per ton, especially in remote sites with diesel power.

◉

Wet Pan for Small Mines

Low capital, low operating cost, and simple maintenance make wet pan mills the right entry point for artisanal and small gold operations.

⚒

Hammer Mill Flexibility

Batch or continuous, diesel or electric — hammer mills grind small tonnages without a full milling plant.

🔩

Spares That Match

Liners, grinding balls, wheels and hammers stocked for quick dispatch — keep your mill turning, not waiting.

Which grinder fits your ore?

Tell us your ore hardness, throughput target, and power source — we will recommend ball mill, wet pan mill, or hammer mill configuration with factory-direct pricing.

Get a Grinding Quote
