Series 01

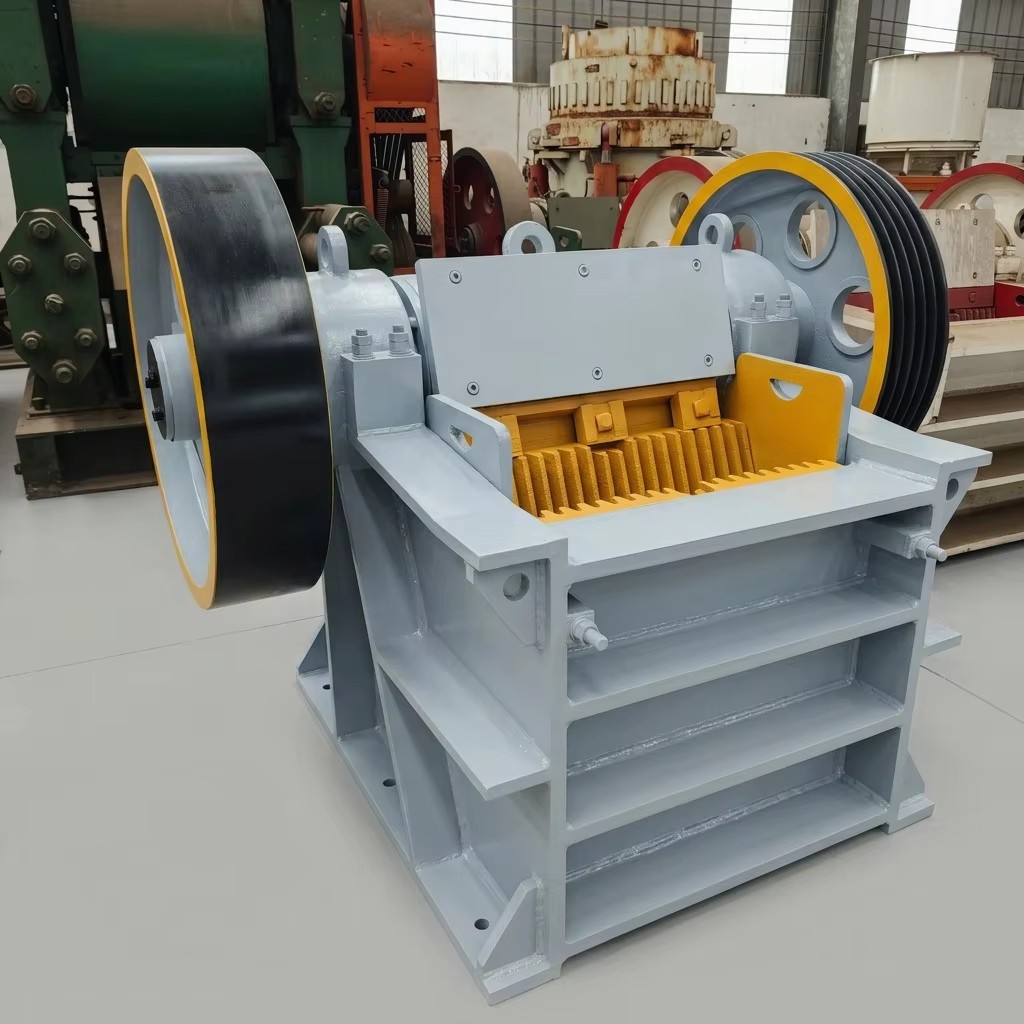

PE Series Jaw Crushers
Models: PE-250×400 · PE-400×600 · PE-500×750 · PE-600×900
The first stage of every hard-rock gold line. PE jaws reduce run-of-mine ore to a size your grinding mill can handle efficiently — cast steel frames, forged eccentric shafts, and manganese jaw plates built for continuous duty.
- Diesel Drive Option
- Manganese Liners
- Fast Discharge Setting
- Deep Crushing Chamber
PE Series Specifications
| Model | Feed Opening (mm) | Max Feed (mm) | Discharge Range (mm) | Capacity (t/h) | Motor (kW) |
|---|---|---|---|---|---|
| PE-250×400 | 250×400 | 210 | 20–60 | 5–20 | 15–18.5 |
| PE-400×600 | 400×600 | 340 | 40–100 | 16–65 | 30 |
| PE-500×750 | 500×750 | 425 | 50–100 | 40–110 | 55 |
| PE-600×900 | 600×900 | 500 | 65–160 | 60–130 | 75 |
Standard specifications — final confirmation at order. Diesel-engine driven versions available (e.g. PE-250×400 with YANMAR diesel). Capacity varies with ore hardness and feed size.
